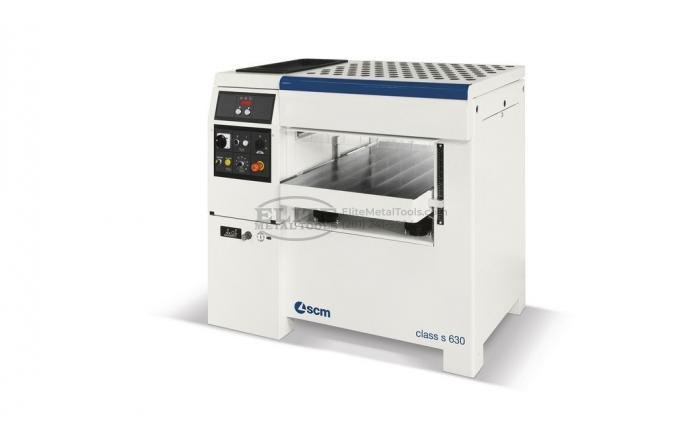

Name: SCM Group Heavy Duty Planer with Tersa Head Class S630
Brand: SCM Group
SKU: Class S630
Price: 25595.00 USD
Availability: InStock

SCM Group Heavy Duty Planer with Tersa Head Class S630

$25,595.00

24″ Planer with TERSA Head
Working Width: 24 3/4″
Max. Depth of Cut: 5/16″
Feed Speeds: 13- 65 FPM

SKU: Class S630 Category: Planers

Standard Features

Tersa 4 knife, insert cutterhead
Electric powered movement feed table raise and lower (2 speed)
Steel, sectioned infeed
Two rubber outfeed rollers
Variable feed system
Powered bearing-assisted feed rollers
Digital LED readout of working thickness
Magnetic starter with overload protection
Table lifting by four high precision jack screws
Adjustable bed rollers in feed table
Course and fine thickness adjustment
Tool set
Dust hood

Specifications

Motor HP	12 HP
Working Width	24 3/4″
Working Height	1/8″ – 11 3/4″
Max. Depth of Cut	5/16″
Minimum Length of Stock	10 1/4″
Cutter Head Diameter	4 3/4″
RPM	4500
No. of Knives	4
Knife Dimensions	25 1/4″ x 1 1/4″ x 1/8″
Table Size	24.75″ x 39.4″
Feed Speeds (variable)	13 – 65 FPM
Infeed Roller	Steel Sectional, Power Driven
Outfeed Roller (X 2)	Rubber, Power Driven
Dust Hood Diameter	6″
Noise Level (dB)	70
Overall Dimensions (L x W x H)	51″ x 40″ x 45″
Shipping Weight	2,710 lbs
Net Weight	2,550 lbs
Electrical Requirements	45 amps @ 230v
Dust Extraction	980 CFM
