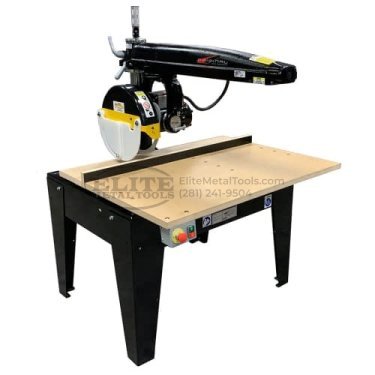

The Original Saw Company 14” 230V Single Phase 3HP with 24” Crosscut Heavy Duty Radial Arm Saw 3536

Description

The 14” Heavy Duty Radial Arm Saw is a precision saw made for the rigors of everyday industrial use. Original Saw Company has a history rooted in American-made products. From its motor to its cast-iron arm, the Heavy Duty Series continues to be a workhorse in the woodworking industry. This radial arm saw is made from cast iron and heavy gauge, formed steel, and then powdered coated.

Features

• Cutting ability: Bevel, Compound Miter, Crosscut, Dado, Miter, Rip (with Rip Kit Add On)
• Carriage return spring
• Adjustable crosscut stop
• E-Stop
• Oversized MDF Table Top
• Automatic blade braking system
• Carriage rides on 8 wide-contact double row ball bearings, which provide smooth vibration-free travel
• Arbor nut and precision-ground blade collars
• HDPE (high-density polyethylene) lower blade guard that provides full coverage
• Accessibly start/stop button on the left front edge of the table
• New elevating cranks
• New upper guard housing

Specifications

• Motor: 3HP Single Phase 230V
• Max Cut Depth 4 ⅛”
• Max Crosscut: 24” Wide
• Length: 47”
• Width: 46”
• Height: 60”
• Table Height: 33”
• Recommended Usage: up to 8 hours per day
