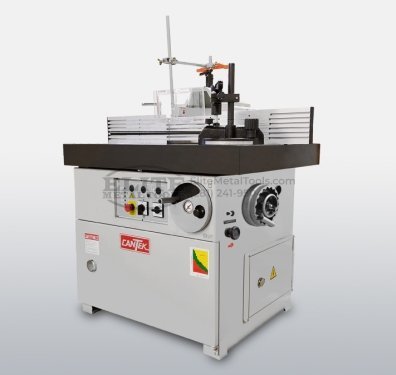

Cantek 7.5HP Spindle Shaper with Tilting Spindle SS512TB

Production 7.5 HP tilting spindle shaper.

The Cantek SS512TB tilting spindle shaper is a ruggedly built shaper with refined features well suited for demanding production environments. Its’ versatile design makes it the ideal shaping solution for edge-profiling, door & furniture components, moldings, tenoning, and more. The powerful dual direction 7.5HP driven spindle allows for optimum shaping even with large profiles. The heavy-duty cast-iron table and shaping column ensure maximum stability with superior vibration damping for optimum finish quality.

Why Cantek SS512TB Tilting Shaper?

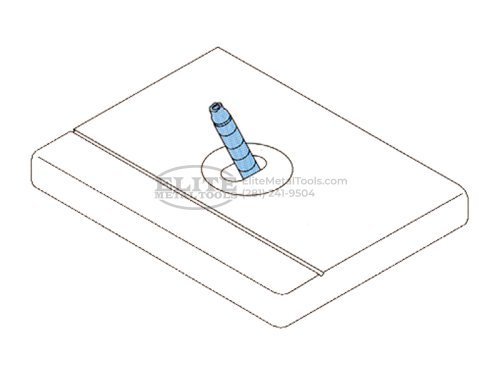

• Tilting spindle from -5° to +45°
• 1 ¼” interchangeable spindle is standard (other sizes available)
• Large cast-iron table is ground and polished for maximum stability and durability
• Powerful 7.5 HP motor for even the most demanding profiling work
• Five spindle speeds can be easily adjusted to suit your tool diameter
• Electronic spindle brake for added safety and facilitates with fast changeover
• Precision fence assembly with micro infeed and outfeed fence adjustment
• Finger style fence allows fence to be adjusted around the cutter for added safety and workpiece stability

Key Advantages

• Cast iron ground & polished table with insert rings & t-slot for mitre / tenoning jig

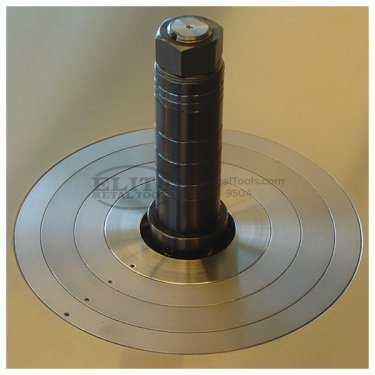

• Precision ground and electronically balanced spindle
• V-belt drive with (5) spindle speeds is easily accessed from the front of the machine (3/4/6/8/1000 RPM)
• Electric spindle brake for added safety
• Spindle lock – with limit switch safety, machine will not start with lock engaged
• Micro spindle height adjustment with dial indicator for precise height adjustment
• 1 ¼” Interchangeable cutter spindle is standard
• Forward/reverse spindle rotation
• Adjustable “finger” type fence
• Independent micro-fence adjustment on both sides
• Plug to accept Cantek Power Feeder and table is pre-drilled for mounding feeder base
• Includes the following standard equipment:
  • 1 ¼” spindle
  • 5” dust chute on guard & (1) 4” dust chute in the table
  • Safety guard
  • Mitre tenoning jig

Specifications

• Table Size: 31.5” x 39.4″
• Tilting Spindle: -5° to +45°
• Spindle Speeds (5): 3000/4000/6000/8000/10000 RPM
• Spindle Taper: 5 MT
• Spindle Diameter: 1.25”
• Motor: 7.5 HP
• Largest Diameter of Cutter
  • Above Table: 8.25”
  • Below Table: 13.25”
• Fence Size: 6″ x 43″
• Vertical Spindle Stroke: 7″
• Usable Length of Spindle: 5.5” long
• Dust Port: (1) 5″ on guard,  (1) 4” in table
• Total HP: 7.5 HP
• Net Weight: 1,034 lbs.
• Machine Dimensions: 48.4″ x 39.4″ x 52.75”
• Shipping Weight: 1,166 lbs.
• Shipping Dimensions: 45.25” x 37″ x 41″
