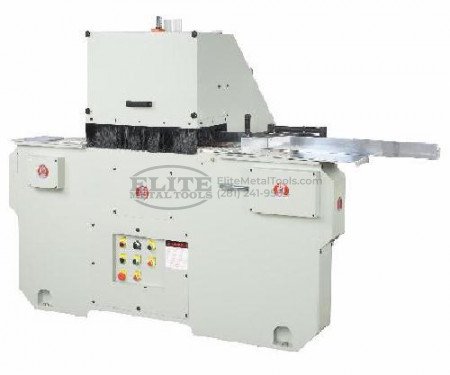

Castaly Industries Single Head Through Feed Shaper Machine CS-1C

Features

• Designed for mass shaping and sanding production for raised panel door or profile edge jobs, faster and easier.
• Heavy sheet metal frame for durability usage.
• Variable speed, through feed, 5” wide rubber pad conveyor for the best finish selections.

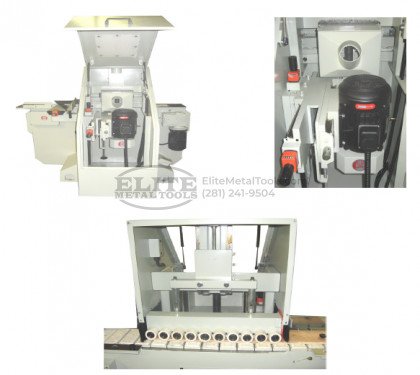

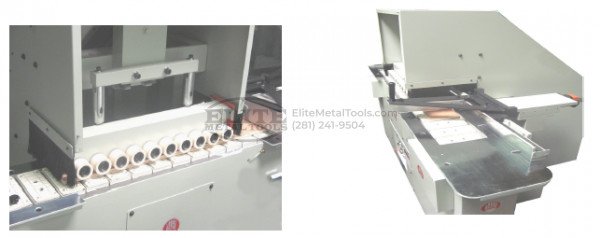

• Two rows heavy-duty spring pressure rolls with track belts at top to hold the material tightly to prevent sliding during the cutting and sanding process.
• Equipped with industrial motor for full power cutting and sanding capacity.
• 6” long spindle for stackable tooling, easily adjusts and quickly setup.
• X and Y axis mechanical readout for easily reset cutter or sander positions.
• Extra side roller table, it extends up to 36” to support the larger width material.
• Shaper head can be moved up & down, forward & backward.
• Sanding head can be tilted for different angular setup.
• Variable speed frequency controller for the sanding heads suited for all different speed sanding wheels, disc, brush and pneumatic drum. Easy controls for machine variable speed adjustment operates from this centralized control panel.

Specifications

• SKU Number: CS-1C
• Max. Work Thickness: 4″
• Min. Work Width: 2″
• Max Cutter Dia.: 8″
• Shaper Spindle Length: 6″
• Shaper Spindle Dia.: 1¼”
• Shaper Spindle Speed: 7500 RPM
• Shaper Motor: 7½ HP
• Feed Speed (Variable): 0 ~ 40 FPM
• Feed Motor:2 HP x 2
• Net Weight: 1900 LBS
• Gross Weight: 2200 LBS

Options

SD-AOFEED – Auto Feed Magazine
