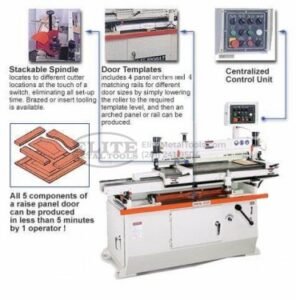

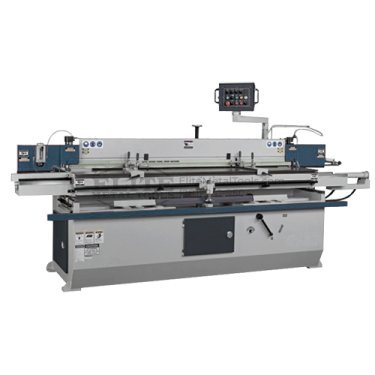

Castaly Industries 86” Auto Raised Wood Panel Door Shaper CS-86PAAU

Features

• These models are specially designed to make all the parts for raised panel doors by one spindle shaper without changing knife (rail stile, panel) to get mass production.
• It is also able to do the chair leg, furniture parts by the maximum 7″ width (in and out) copy capacity.

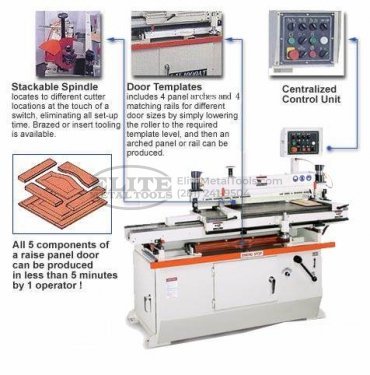

• The 6″ high stackable spindle with 3 pneumatic stops are easily and accurately setup for each cutter position.
• Rigid construction made by heavy sheet metal frame, cast iron table & base for durability usage.
• Full power industrial motor is suitable for best cutting capacity.
• Strong cutting power does not need to be precut for the arch or oval panel.
• Table movements from right to left are hydraulic powered to achieve powerful cutting and adjust cutting speed variability.
• Table movements in and out are pneumatic powered to follow the template sensitively and ensure the same shape was copy.
• Linear guide rails and bearings let the moving table by lightweight and smoothly to get the long-life usage also.
• Two side cast iron fences locked in the groove to finish square cut and centering the workpiece easily.
• Heavy-duty air pistons hold down the workpieces tightly without sliding during the cutting process.
• Proximity switches control the cutting stroke depend by the work size for fast production and time saving.
• Two separate stops work for rail, stile or panel arch cutting positions.

Specifications

• Max Length (Left to Right): 86”
• Max Width (In and Out): 7”
• Max Thickness: 6”
• Max Cutter Size: 7”
• Spindle Diameter: 1-1/4”
• Spindle Length: 6”
• Spindle Speed: 9000 RPM
• Main Motor: 10 HP
• Hyd. Pump: 1 HP
• Dust Hood: 4”
• Net Weight: 2950 lbs
• Gross Weight: 3560 lbs
