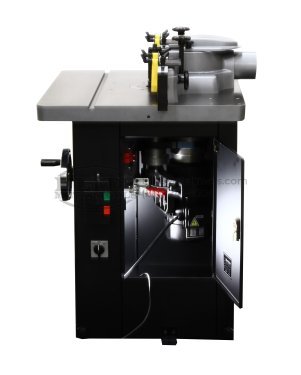

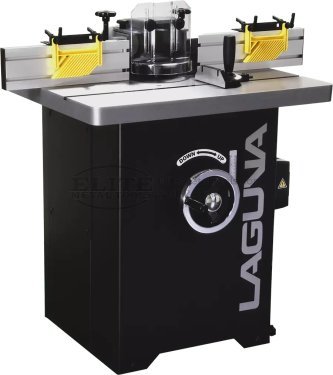

Laguna Tools 3HP 220V Single Phase 4 Speed Compact Shaper MSHAP4SPD-3-0130

Description

The Compact Shaper from Laguna is already regarded as best in class. Impressive precision fence and wide-range RPM make it a versatile investment for any pro. The fit and finish on this world class machine is incredible. You will be hard pressed to find a better value than the Compact Shaper: 4 speeds, generous sized table, wheels built right in. Easy spindle lock makes tool changes a snap. One of the most impressive features is the speed change. A simple pull of a handle compresses the distance from the spindle to the pulley, changing speeds along the way. Another outstanding detail is the flat poly-groove belt which transfers more power with less vibration; something you won’t find in this price range anywhere else.

Specifications

• Motor: 3HP, 1 Phase, 220 Volt 60 Hz
• Table Size: 32″ x 26 1/2″
• Spindle Travel: 4″
• Spindle Sizes: 3/4″ & 1 1/4″ (Incl.)
• Router Collets: 1/4″ & 1/2″ (Incl.)
• Capacity Under Nut: 4″ (1 1/4″ Spindle)
• Spindle Speeds: 4000, 6000, 8000, 10000 RPM
• Forward/Reverse: Yes
• Table Opening Diameter: 6 1/4″
• Table Insert Opening Diameter: 2 1/2″, 4 5/16″
• Rotation: Forward/Reverse
• Table T-Slot: Yes
• Fence Size: 4 13/16″ x 16″
• Drive Belt: Flat Poly-Groove
• Table Height from Floor: 34″
• Dust Port Diameter: 4″
• Micro Adjustment on Fence: Yes
• Wheel System: Built In
• Weight (Net/Ship): 450/500 lbs
• Shipping Dimensions (L x W x H): 40″ x 30″ x 42″

Available Options

• Power Feeder 3-Wheel / 4 Speed
• Power Feeder 4-Wheel / 8 Speed
