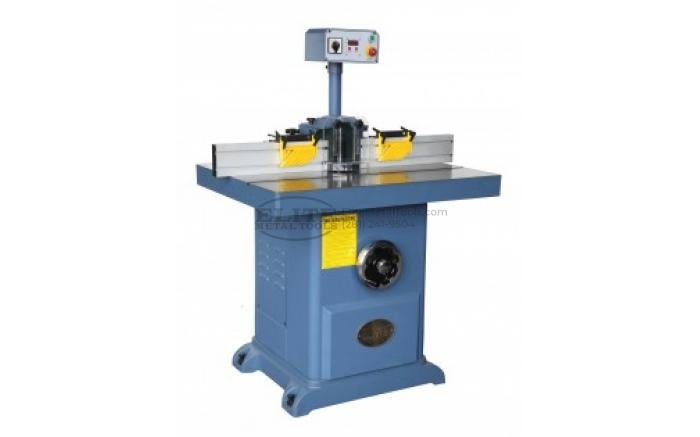

Oliver 4705 Shaper
$5,724.99
- Spindle Direction is Reversible
- 3 Spindle Speed
- Min. CFM required–800 CFM
- Table Height 36-1/2″
Description
The Oliver 4705 Shaper uses an interchangeable quill assembly capable of handling 3/4″ or 1-1/4″ spindles. With a 4″ spindle travel and cutter diameters up to 8″ no job is out of the question. A newly designed dovetail system for the spindle height adjustment ensures both accuracy and longevity with minimal maintenance. With the skilled woodworker in mind, Oliver put a lot of thought into its fence design. With accurately scaled micro-adjusts for the right and left fences and integral feather board hold downs the operator is sure to be pleased.
| Model No. | 4705 |
| Table Dimensions | 39″x29-1/2″ |
| Table Height | 36-1/2″ |
| Spindle Direction | Reversible |
| Spindle Speed | 5,000, 7,000, 10,000 RPM |
| Max. Tool Diam. | 7″ below table, 8″ Above table |
| Spindle Diameter | 1-1/4″& 3/4″ interchangable |
| Dust collector port | 4″ |
| Min. CFM required | 800 |
| Motor |
5HP 1 PH 220V 7.5HP 3 PH 220/440V prewired 220V |
| Dimensions | 39″x31″x45″ |
| Weight | 870 lbs. |
Additional Information
| Manufacturer | Oliver Machinery |
|---|---|
| SKU | 4705 |
| Shipping Method | LTL Freight |
| Weight | 800 lb |
| Dimensions | 43 × 39 × 60 in |
Product Documents
Additional information
| Weight | 800 lbs |
|---|---|
| Dimensions | 43 × 39 × 60 in |
| Brand | Oliver Machinery |
