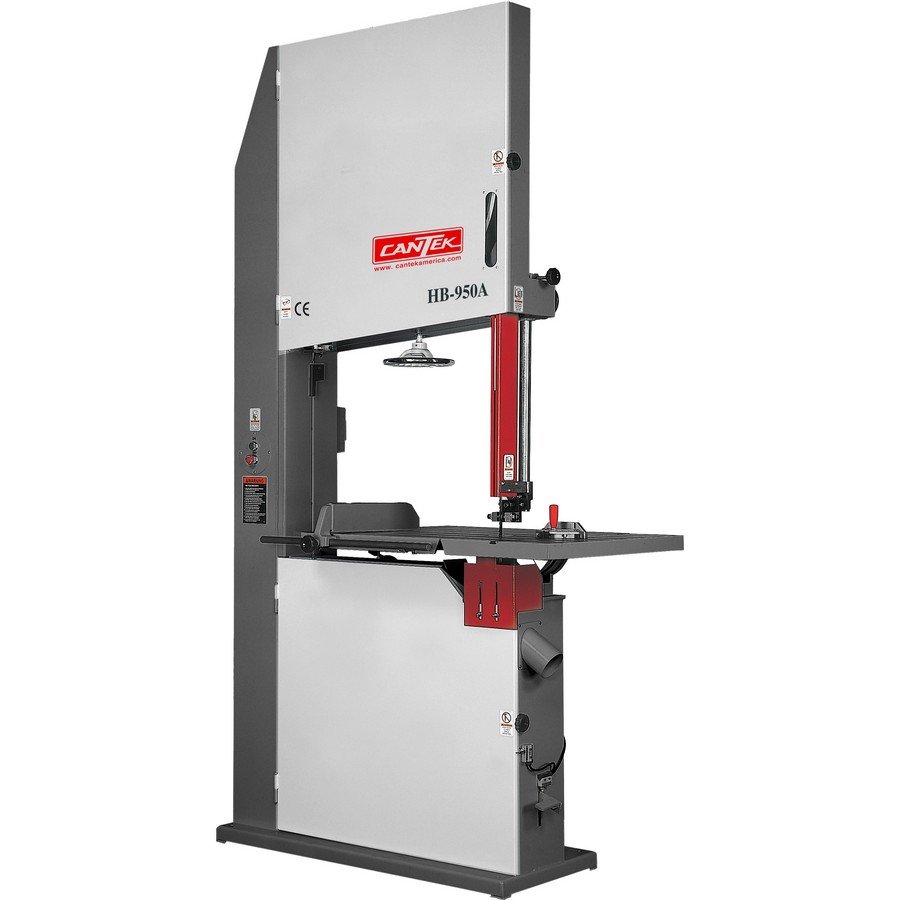

Cantek HB950A 37" 2 in 1 Vertical Band Saw (Band Resaw) 10HP Three-Phase
Cantek HB950A 37" 2 in 1 Vertical Band Saw (Band Resaw) 10HP Three-Phase is documented as a Band Resaw from Cantek America. The exact CANHB950A-230-3 configuration is mapped to Stellar Woodworks SKU CANHB950A. Recorded technical data includes horsepower: 10HP, motor power (hp): 10HP, and prewired voltage (v.): 230/3/60. Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.
Cantek America
2046 lbs
63.78 × 32.673 × 113.39 in
Bandsaws
8 in stock
Overview
Cantek HB950A 37" 2 in 1 Vertical Band Saw (Band Resaw) 10HP Three-Phase is documented as a Band Resaw from Cantek America. The exact CANHB950A-230-3 configuration is mapped to Stellar Woodworks SKU CANHB950A. Recorded technical data includes horsepower: 10HP, motor power (hp): 10HP, and prewired voltage (v.): 230/3/60. Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.
Key Features
- 2 in 1 machine for rip and curve band sawing
- Bearing blade guide mechanism with side and back bearing guide for rigid back-up support of the blade
- Micrometric adjustment to upper guide
- Cast iron saw wheels are precision machined and laminated with rubber for accurate blade tracking and slippage prevention
- Cast iron work table is precision ground and can tilt to 45 degrees
- Blade tension is conveniently adjusted by means of a handwheel and tension is shown by a scale for accurate tension setting.
- Foot brake for quick shutdown of machine
- Heavy gauge steel frame ensures vibration free cutting
Technical Specifications
| Band Saw Size & Wheel Diameter (in) | 37" |
|---|---|
| Blade Length (in) | 259" ~ 261" |
| Blade Speed | 5500 FPM |
| Blade Speed (SFPM) | 5500 FPM |
| Blade Width (in) | 1/4" ~ 2" |
| Cutting Capacity Height (In.) | 22" |
| Dust Port Outside Diameter (in) | 4" x 2 |
| Height | 113-25/64" |
| Horsepower | 10HP |
| Length | 63-25/32" |
| Maximum Tilt | 45° |
| Motor Phase | Three Phase |
| Motor Power (HP) | 10HP |
| Prewired Voltage (V.) | 230/3/60 |
| Product Type | Band Resaw |
| Table Size | 45-1/4" x 31-1/2" |
| Table Size (L x W) (In.) | 45-1/4" X 31-1/2" |
| Table Tilt (Deg.) | 0 – 45 Degrees |
| Weight | 2,046.000 lbs |
| Width | 32-43/64" |
Available Documents
| Brand | Cantek America |
|---|---|
| Weight | 2046 lbs |
| Dimensions | 63.78 × 32.673 × 113.39 in |
| Category | Bandsaws |
| Availability | In stock / ready to order |
No customer reviews have been submitted for this machine yet. Contact our equipment team for application references and current delivery information.
Estimated Handling & Transit
Both periods are estimates, not guaranteed delivery dates. Manufacturer lead time, special configuration, backorders, oversized transport, and customer changes can require more time.
Freight, Rigging & Installation
After you order, our team will contact you to arrange the carrier, destination access, delivery appointment, unloading or rigging needs, and any optional installation or training services before shipment. Standard freight does not automatically include unloading, final placement, crane or forklift service, rigging, installation, commissioning, operator training, or utility connections. Any additional charge not collected at checkout is disclosed for your written approval before shipment; we do not add an undisclosed charge.
Returns & Cancellations
Machinery orders may be subject to manufacturer production status, freight commitments, and authorized return conditions. Review the controlling policies; you do not need to contact us before placing the order.
Proof of Delivery & Installation
Real photos from real jobs. We do not drop machines at the curb — we coordinate delivery, installation, calibration, and operator handoff.
Interested in This Machine?
Our equipment team can answer questions, arrange a demonstration, or prepare a written quote defining product availability, freight, unloading, installation, training, and warranty scope.
Cantek HB950A 37″ 2 in 1 Vertical Band Saw (Band Resaw) 10HP Three-Phase
Sale price:$9,360.00
Cantek HB950A 37″ 2 in 1 Vertical Band Saw (Band Resaw) 10HP Three-Phase is documented as a Band Resaw from Cantek America. The exact CANHB950A-230-3 configuration is mapped to Stellar Woodworks SKU CANHB950A. Recorded technical data includes horsepower: 10HP, motor power (hp): 10HP, and prewired voltage (v.): 230/3/60. Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.
8 in stock
Overview
Cantek HB950A 37" 2 in 1 Vertical Band Saw (Band Resaw) 10HP Three-Phase is documented as a Band Resaw from Cantek America. The exact CANHB950A-230-3 configuration is mapped to Stellar Woodworks SKU CANHB950A. Recorded technical data includes horsepower: 10HP, motor power (hp): 10HP, and prewired voltage (v.): 230/3/60. Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.
Key Features
- 2 in 1 machine for rip and curve band sawing
- Bearing blade guide mechanism with side and back bearing guide for rigid back-up support of the blade
- Micrometric adjustment to upper guide
- Cast iron saw wheels are precision machined and laminated with rubber for accurate blade tracking and slippage prevention
- Cast iron work table is precision ground and can tilt to 45 degrees
- Blade tension is conveniently adjusted by means of a handwheel and tension is shown by a scale for accurate tension setting.
- Foot brake for quick shutdown of machine
- Heavy gauge steel frame ensures vibration free cutting
Technical Specifications
| Band Saw Size & Wheel Diameter (in) | 37" |
|---|---|
| Blade Length (in) | 259" ~ 261" |
| Blade Speed | 5500 FPM |
| Blade Speed (SFPM) | 5500 FPM |
| Blade Width (in) | 1/4" ~ 2" |
| Cutting Capacity Height (In.) | 22" |
| Dust Port Outside Diameter (in) | 4" x 2 |
| Height | 113-25/64" |
| Horsepower | 10HP |
| Length | 63-25/32" |
| Maximum Tilt | 45° |
| Motor Phase | Three Phase |
| Motor Power (HP) | 10HP |
| Prewired Voltage (V.) | 230/3/60 |
| Product Type | Band Resaw |
| Table Size | 45-1/4" x 31-1/2" |
| Table Size (L x W) (In.) | 45-1/4" X 31-1/2" |
| Table Tilt (Deg.) | 0 – 45 Degrees |
| Weight | 2,046.000 lbs |
| Width | 32-43/64" |
Available Documents
| Weight | 2046 lbs |
|---|---|
| Dimensions | 63.78 × 32.673 × 113.39 in |
| Brand | Cantek America |
