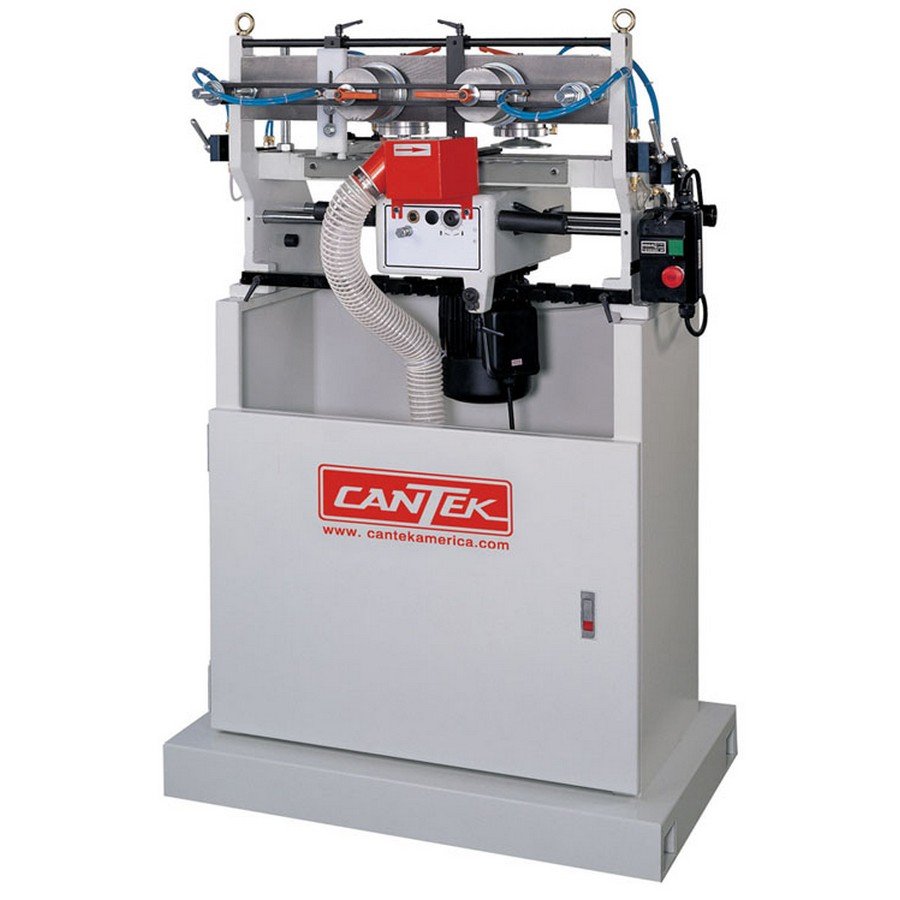

Cantek JDT65 Manual Dovetail Machine Single Phase
Cantek JDT65 Manual Dovetail Machine Single Phase is documented as a Manual Dovetail Machine from Cantek America. The exact CANJDT65-230-1 configuration is mapped to Stellar Woodworks SKU CANJDT65. Recorded technical data includes horsepower: 1 HP, motor power (hp): 1HP, and motor voltage (v.): 230/1/60. Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.
Cantek America
539 lbs
Dovetail Machines
In stock / ready to order
2 in stock
Overview
Cantek JDT65 Manual Dovetail Machine Single Phase is documented as a Manual Dovetail Machine from Cantek America. The exact CANJDT65-230-1 configuration is mapped to Stellar Woodworks SKU CANJDT65. Recorded technical data includes horsepower: 1 HP, motor power (hp): 1HP, and motor voltage (v.): 230/1/60. Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.
Key Features
- Ideal for drawer production and furniture parts which require high quality dovetail joints.
- Max. workpiece size 59" x 16 ½"

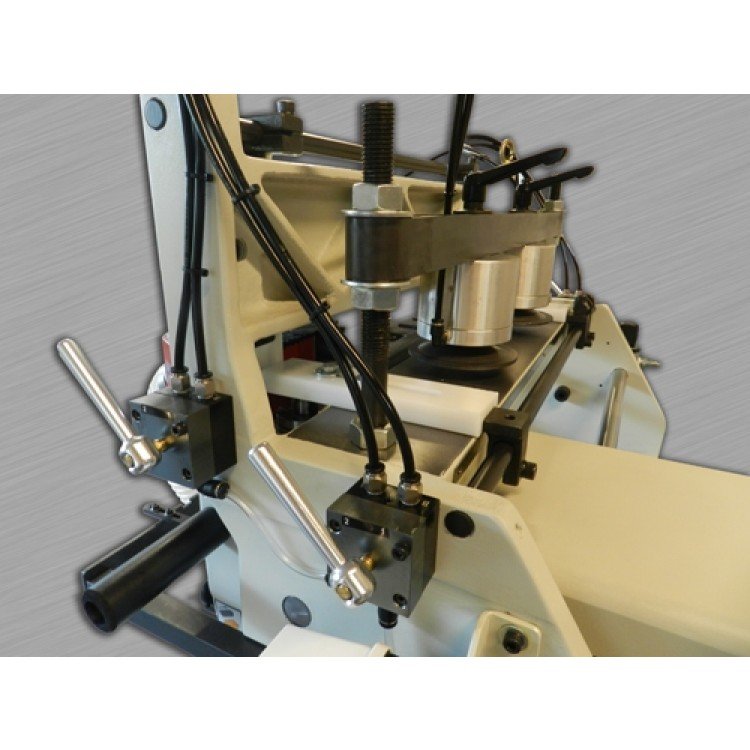

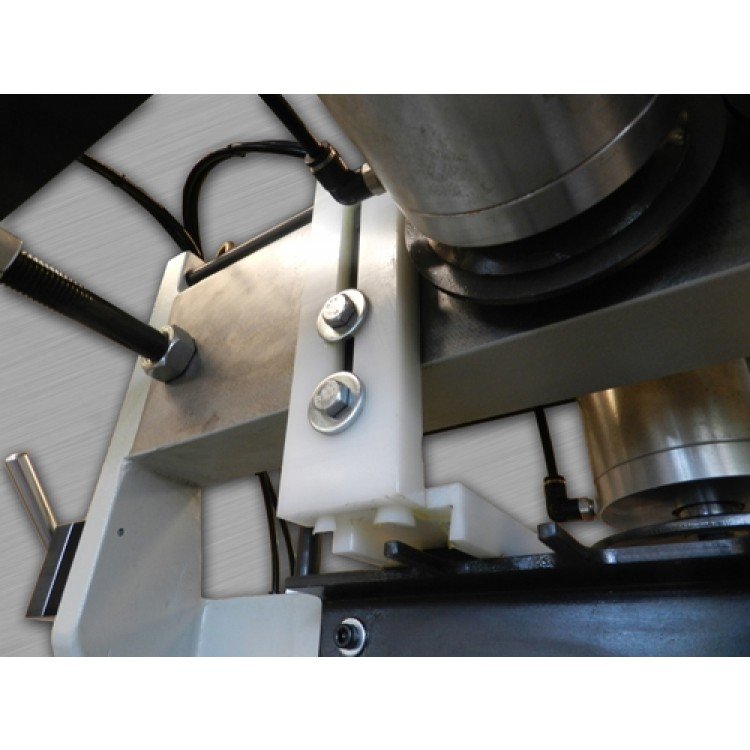

- Workpieces are clamped by air clamps.
- Enclosed-type stand.

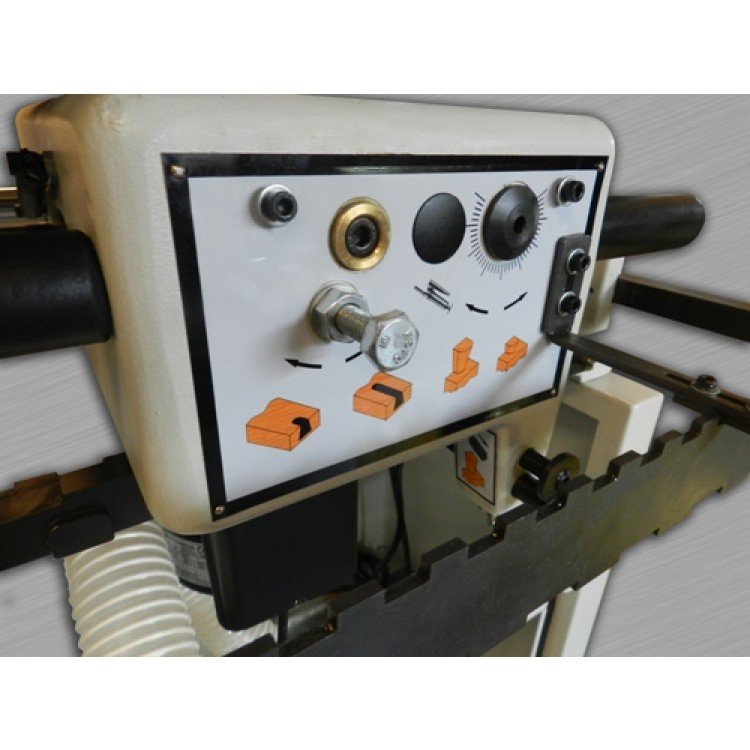

- Equipped with an indication bar for indicating cutting position.
- Tenon width can be micro-metrically adjusted in 2 mm.
- Tenon and mortise depth are conveniently adjusted according to the thickness of workpiece.
- Equipped with one four-sided template providing four types of pitches between dovetails.
- Standard pitch 1", 1 ½", 2" and 2 ½” (Other sizes available on request)

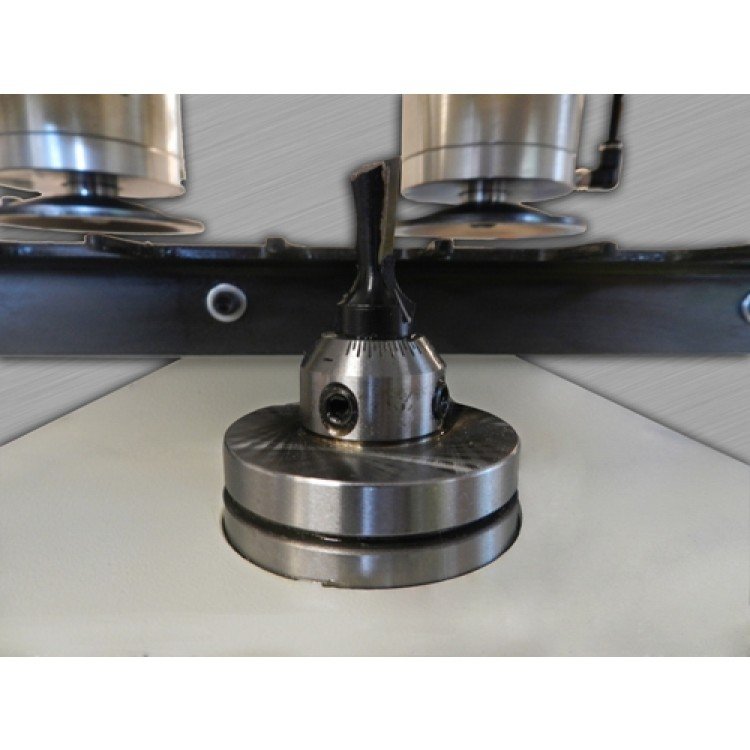

- The spindle accommodates 12 mm T.C.T. cutter bit.
Technical Specifications
| Center to Center Dovetail Spacing (In.) | 1", 1.5", 2", 2.5" standard |
|---|---|

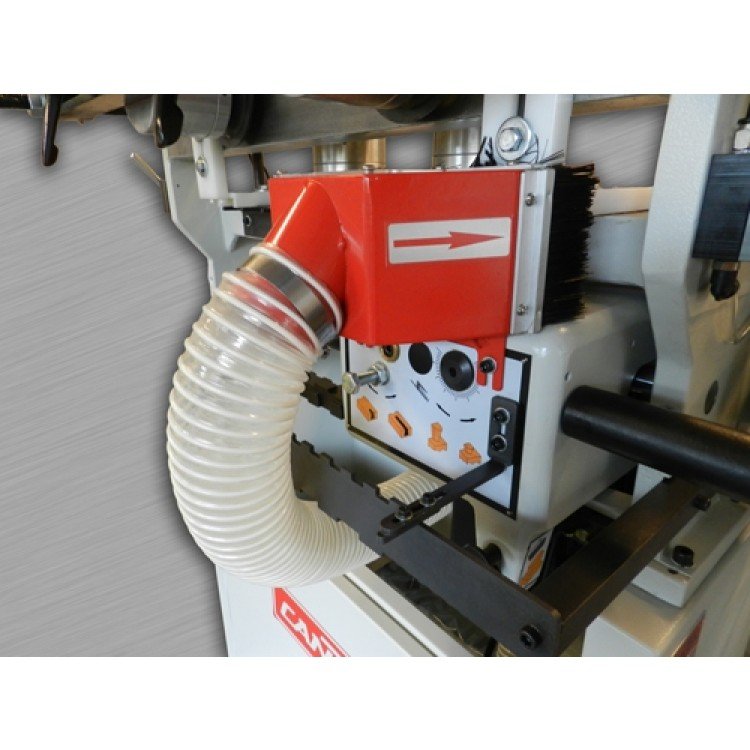

| Dust Port Outside Diameter (In.) | Front 2.5", Rear 4" |
| Horsepower | 1 HP |
| Maximum Dovetail Height (In.) | .71" |
| Maximum Front Thickness (In.) | 2.36" |
| Maximum Side Thickness (In.) | .28" |
| Maximum Work Piece Size (In.) | 59" X 16.5" |
| Minimum Dovetail Height (In.) | .71" |
| Minimum Front Thickness (In.) | .28" |
| Minimum Side Thickness (In.) | .28" |
| Minimum Work Piece Size (L x W)(In.) | 7.9" X 2.4" |

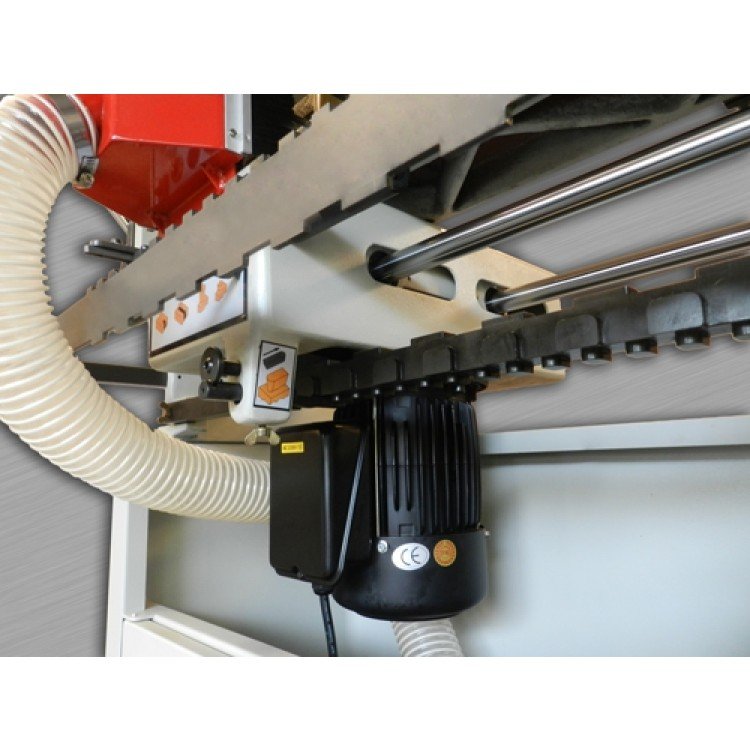

| Motor Current (Amps) | 8 |
| Motor Phase | Single Phase |
| Motor Power (HP) | 1HP |
| Motor Voltage (V.) | 230/1/60 |
| Number of Dovetail Center Lines | 4 |
| Number of Spindles | 1 |
| Phase | 1 |
| Product Type | Manual Dovetail Machine |
| Spindle Speed (RPM) | 18500 RPM |
| Table Height From Floor (In.) | 46.5" |
| Weight | 539.000 lbs |
Available Documents
| Brand | Cantek America |
|---|---|
| Weight | 539 lbs |
| Category | Dovetail Machines |
| Availability | In stock / ready to order |
No customer reviews have been submitted for this machine yet. Contact our equipment team for application references and current delivery information.
Estimated Handling & Transit
Both periods are estimates, not guaranteed delivery dates. Manufacturer lead time, special configuration, backorders, oversized transport, and customer changes can require more time.
Freight, Rigging & Installation
After you order, our team will contact you to arrange the carrier, destination access, delivery appointment, unloading or rigging needs, and any optional installation or training services before shipment. Standard freight does not automatically include unloading, final placement, crane or forklift service, rigging, installation, commissioning, operator training, or utility connections. Any additional charge not collected at checkout is disclosed for your written approval before shipment; we do not add an undisclosed charge.
Returns & Cancellations
Machinery orders may be subject to manufacturer production status, freight commitments, and authorized return conditions. Review the controlling policies; you do not need to contact us before placing the order.
Proof of Delivery & Installation
Real photos from real jobs. We do not drop machines at the curb — we coordinate delivery, installation, calibration, and operator handoff.
Interested in This Machine?
Our equipment team can answer questions, arrange a demonstration, or prepare a written quote defining product availability, freight, unloading, installation, training, and warranty scope.
Cantek JDT65 Manual Dovetail Machine Single Phase
Sale price:$4,200.00
Cantek JDT65 Manual Dovetail Machine Single Phase is documented as a Manual Dovetail Machine from Cantek America. The exact CANJDT65-230-1 configuration is mapped to Stellar Woodworks SKU CANJDT65. Recorded technical data includes horsepower: 1 HP, motor power (hp): 1HP, and motor voltage (v.): 230/1/60. Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.
2 in stock
Overview
Cantek JDT65 Manual Dovetail Machine Single Phase is documented as a Manual Dovetail Machine from Cantek America. The exact CANJDT65-230-1 configuration is mapped to Stellar Woodworks SKU CANJDT65. Recorded technical data includes horsepower: 1 HP, motor power (hp): 1HP, and motor voltage (v.): 230/1/60. Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.
Key Features
- Ideal for drawer production and furniture parts which require high quality dovetail joints.
- Max. workpiece size 59" x 16 ½"
- Workpieces are clamped by air clamps.
- Enclosed-type stand.
- Equipped with an indication bar for indicating cutting position.
- Tenon width can be micro-metrically adjusted in 2 mm.
- Tenon and mortise depth are conveniently adjusted according to the thickness of workpiece.
- Equipped with one four-sided template providing four types of pitches between dovetails.
- Standard pitch 1", 1 ½", 2" and 2 ½” (Other sizes available on request)
- The spindle accommodates 12 mm T.C.T. cutter bit.
Technical Specifications
| Center to Center Dovetail Spacing (In.) | 1", 1.5", 2", 2.5" standard |
|---|---|
| Dust Port Outside Diameter (In.) | Front 2.5", Rear 4" |
| Horsepower | 1 HP |
| Maximum Dovetail Height (In.) | .71" |
| Maximum Front Thickness (In.) | 2.36" |
| Maximum Side Thickness (In.) | .28" |
| Maximum Work Piece Size (In.) | 59" X 16.5" |
| Minimum Dovetail Height (In.) | .71" |
| Minimum Front Thickness (In.) | .28" |
| Minimum Side Thickness (In.) | .28" |
| Minimum Work Piece Size (L x W)(In.) | 7.9" X 2.4" |
| Motor Current (Amps) | 8 |
| Motor Phase | Single Phase |
| Motor Power (HP) | 1HP |
| Motor Voltage (V.) | 230/1/60 |
| Number of Dovetail Center Lines | 4 |
| Number of Spindles | 1 |
| Phase | 1 |
| Product Type | Manual Dovetail Machine |
| Spindle Speed (RPM) | 18500 RPM |
| Table Height From Floor (In.) | 46.5" |
| Weight | 539.000 lbs |
Available Documents
| Weight | 539 lbs |
|---|---|
| Brand | Cantek America |
