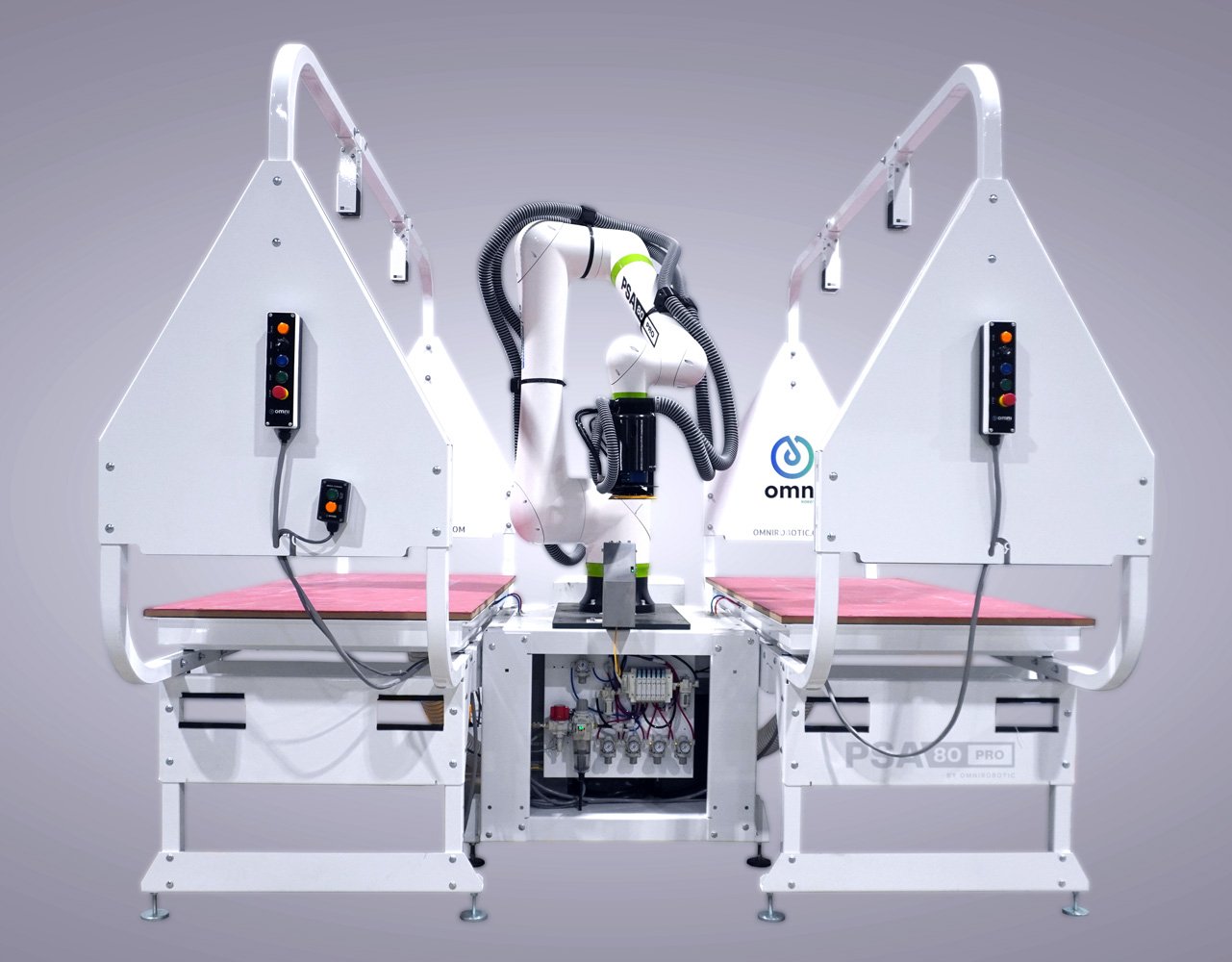

Omnirobotic PSA-80 PRO: AI-Driven Autonomous Panel Sanding System
Omnirobotic PSA-80 PRO: AI-Driven Autonomous Panel Sanding System is documented as a Panel Sanding Assistant from Omni Robotic. The exact PSA-2 configuration is mapped to Stellar Woodworks SKU OMPSA-80. Recorded technical data includes maximum panel size capacity: 2032mm x 914mm (80" x 36"), minimum panel size capacity: 100mm x 100mm (4" x 4"), and minimum pocket size capacity: 92mm x 116mm (3.6" x 4.5"). Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.
Omni Robotic
2000 lbs
Robotics & Automation
In stock / ready to order
Overview
Omnirobotic PSA-80 PRO: AI-Driven Autonomous Panel Sanding System is documented as a Panel Sanding Assistant from Omni Robotic. The exact PSA-2 configuration is mapped to Stellar Woodworks SKU OMPSA-80. Recorded technical data includes maximum panel size capacity: 2032mm x 914mm (80" x 36"), minimum panel size capacity: 100mm x 100mm (4" x 4"), and minimum pocket size capacity: 92mm x 116mm (3.6" x 4.5"). Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.
Key Features

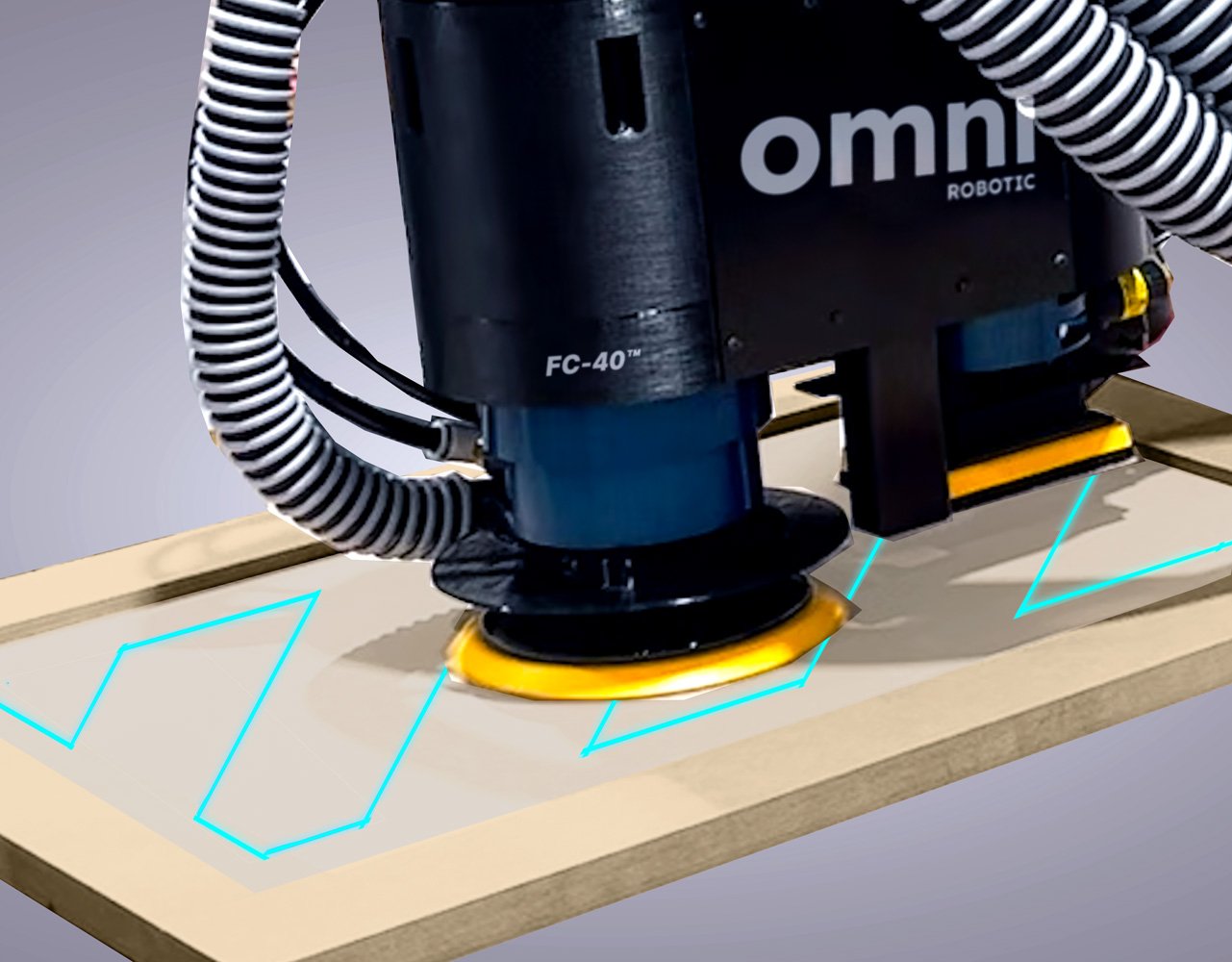

- Criss-cross pattern for MDF/HDF doors

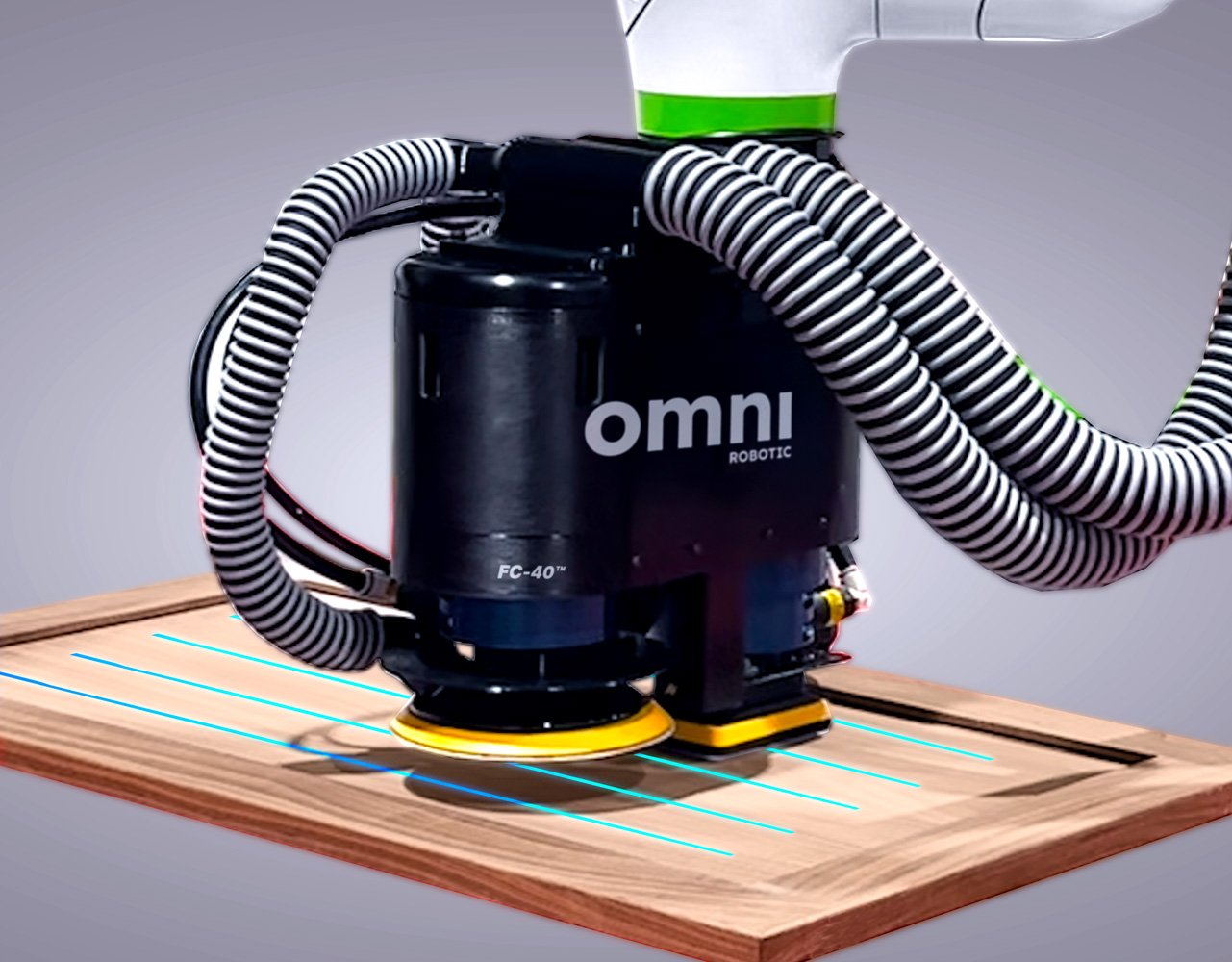

- Raster pattern for hardwood panels

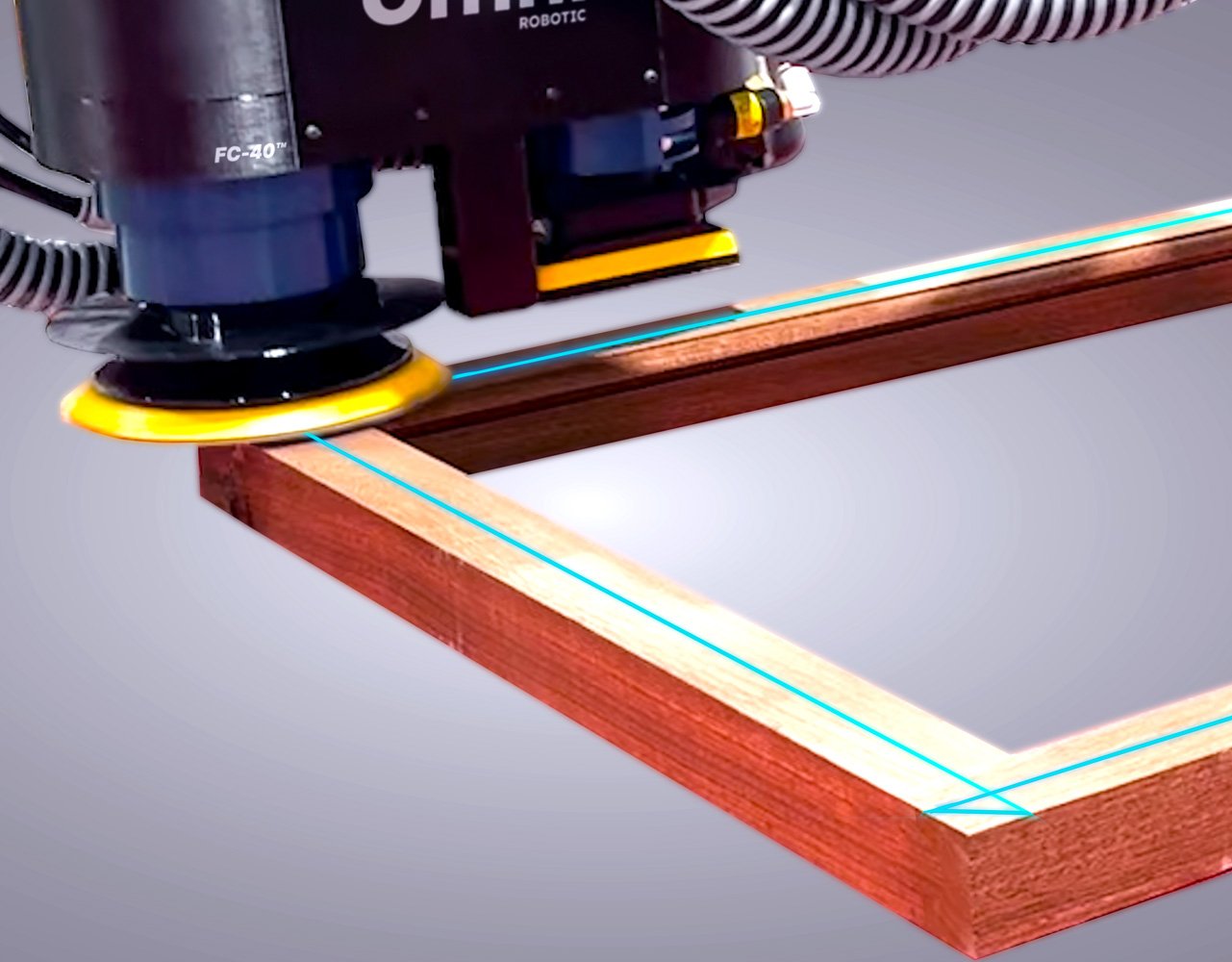

- Butterfly external corner sanding that prevents burning through thin lacquer or primer coat

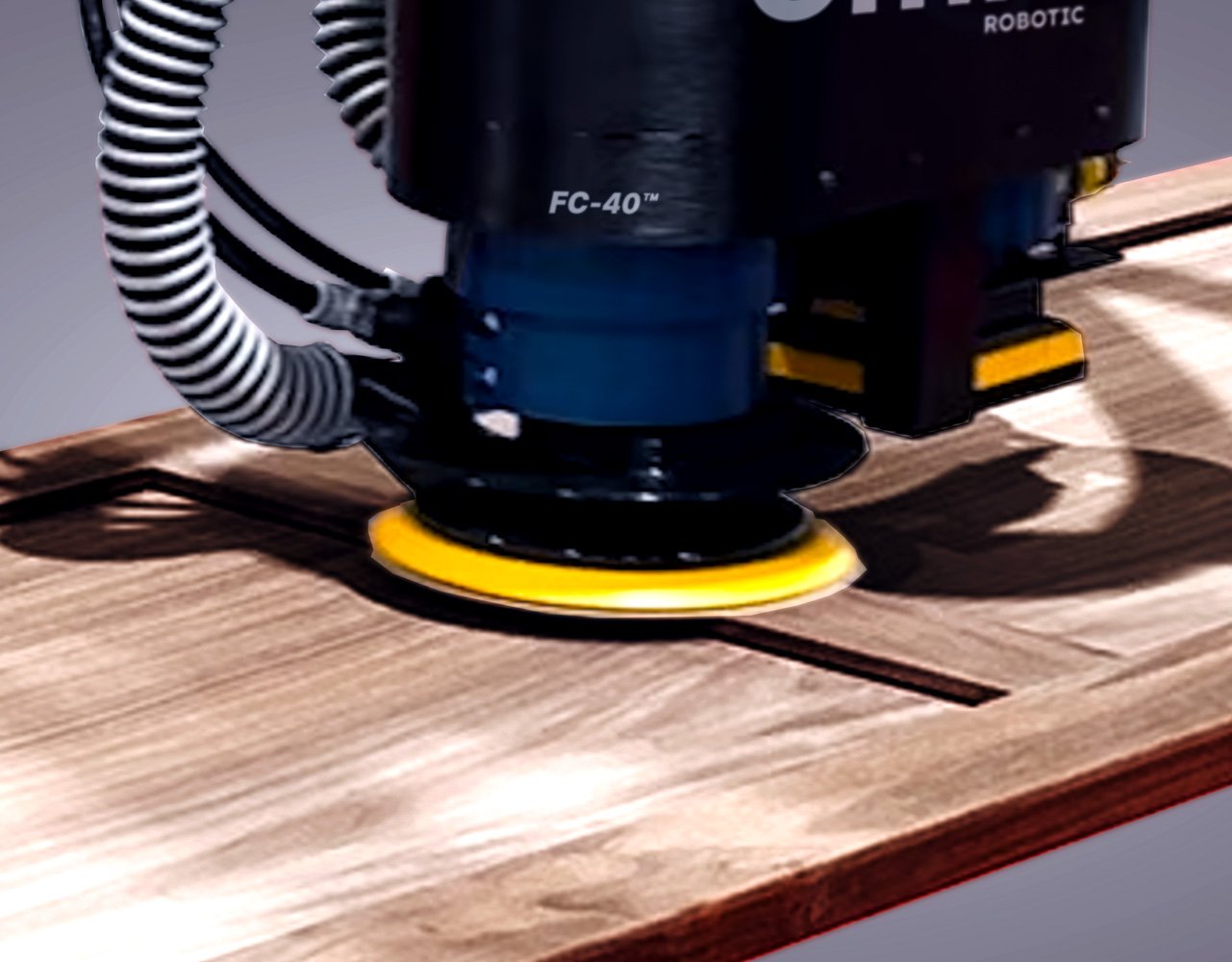

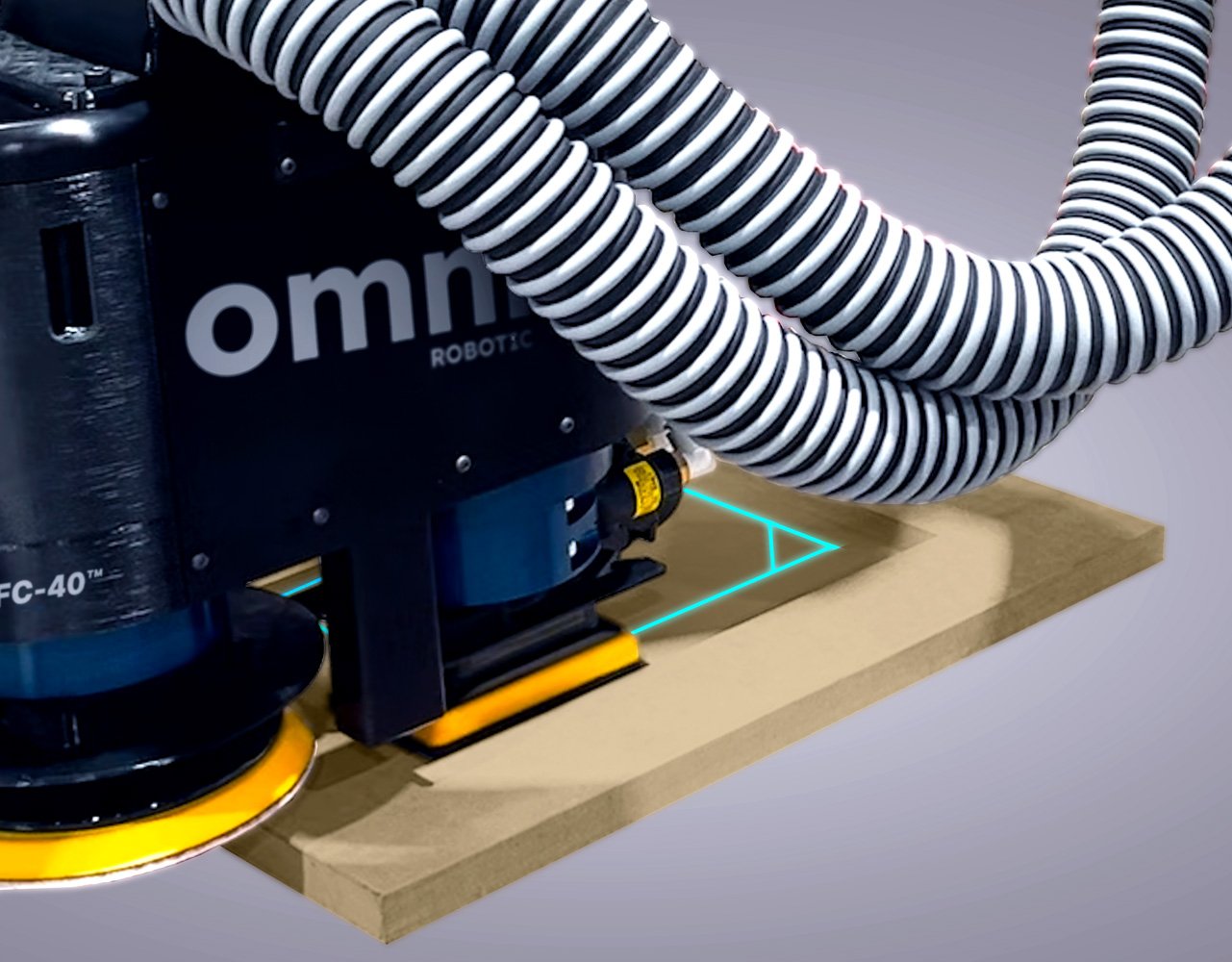

- Butterfly internal corner sanding ideal for putty removal on 5-piece doors

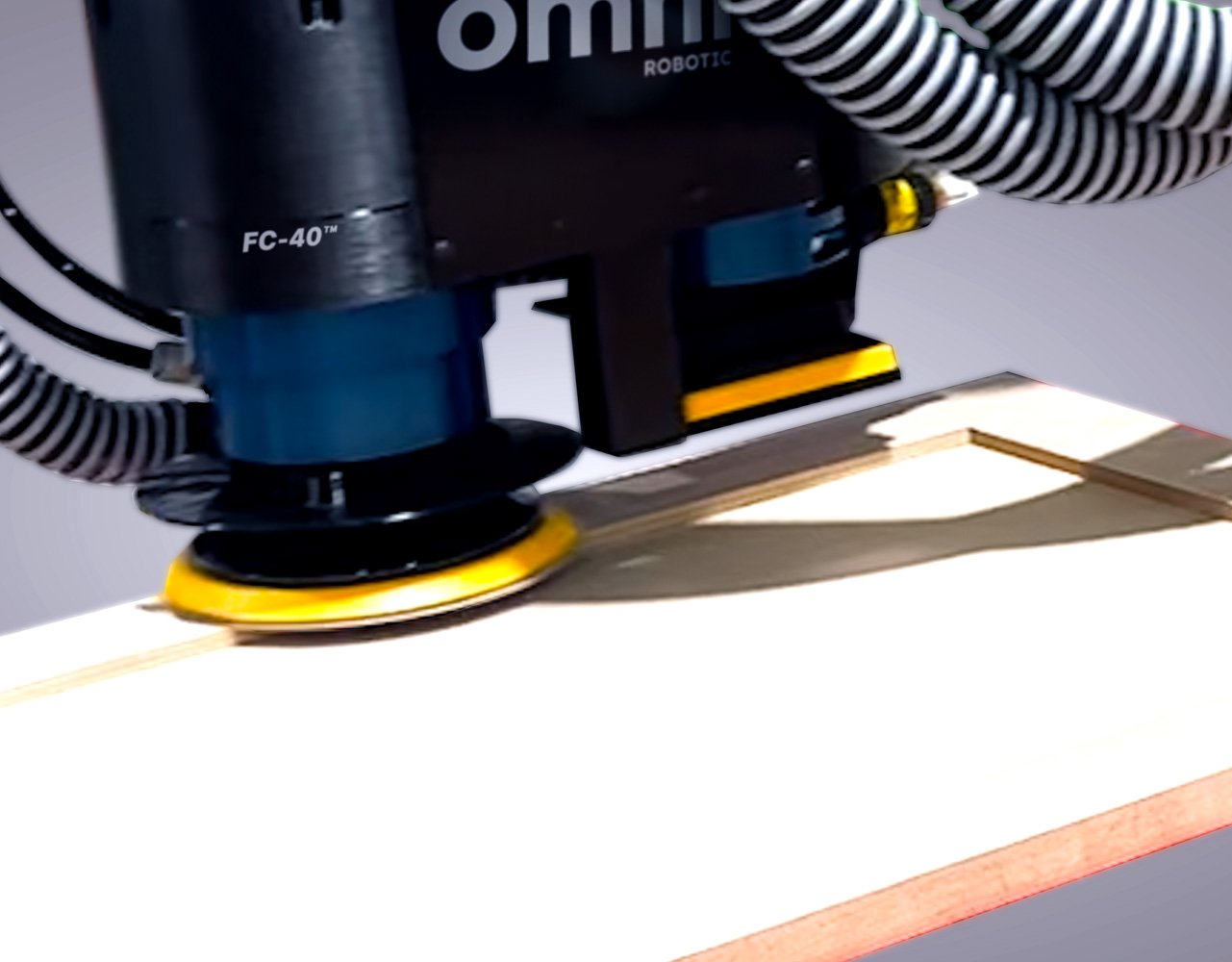

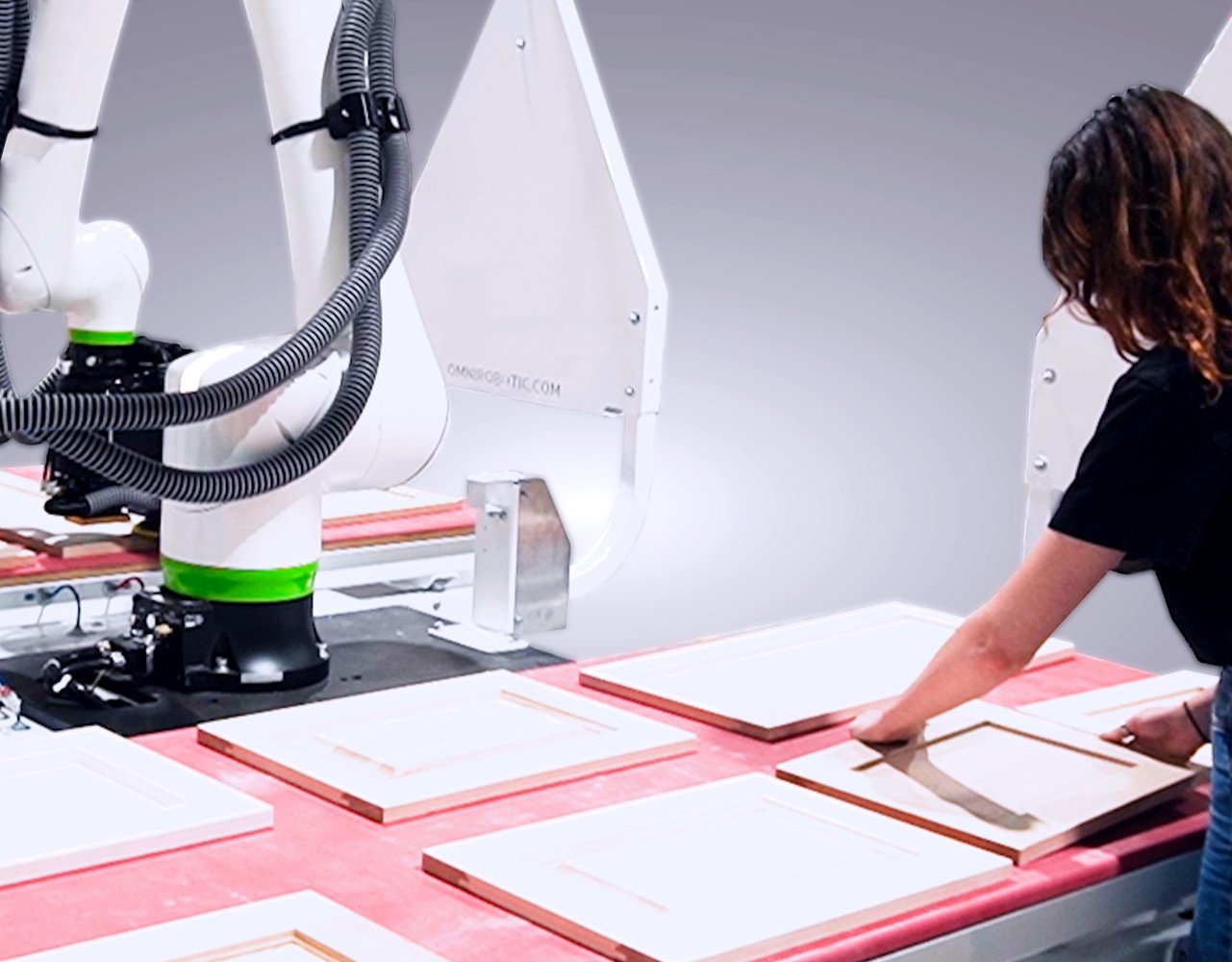

- Efficiently sand cabinet doors, drawer fronts, and panels
- Handle various finishes including raw, primer, and lacquer
- Ideal for high-volume production environments
- Process multiple door styles: Handles various door styles: slab, frame, shaker, and multi-panel
- Ideal for both interior and exterior door manufacturing
- Adapt to diverse project requirements with customizable sanding parameters
Technical Specifications
| Electrical | 208V to 240V AC @ 15A |
|---|---|
| Environment | Temperature 0 – 45°C (32° – 113°F) Humidity 0% – 90% non-condensing |
| Machine Footprint | 3m x 3m (120" x 120") |
| Maximum Panel Size Capacity | 2032mm x 914mm (80" x 36") |
| Media Type | Up to 3 different grits (120 to 400) |
| Minimum Panel Size Capacity | 100mm x 100mm (4" x 4") |
| Minimum Pocket Size Capacity | 92mm x 116mm (3.6" x 4.5") |

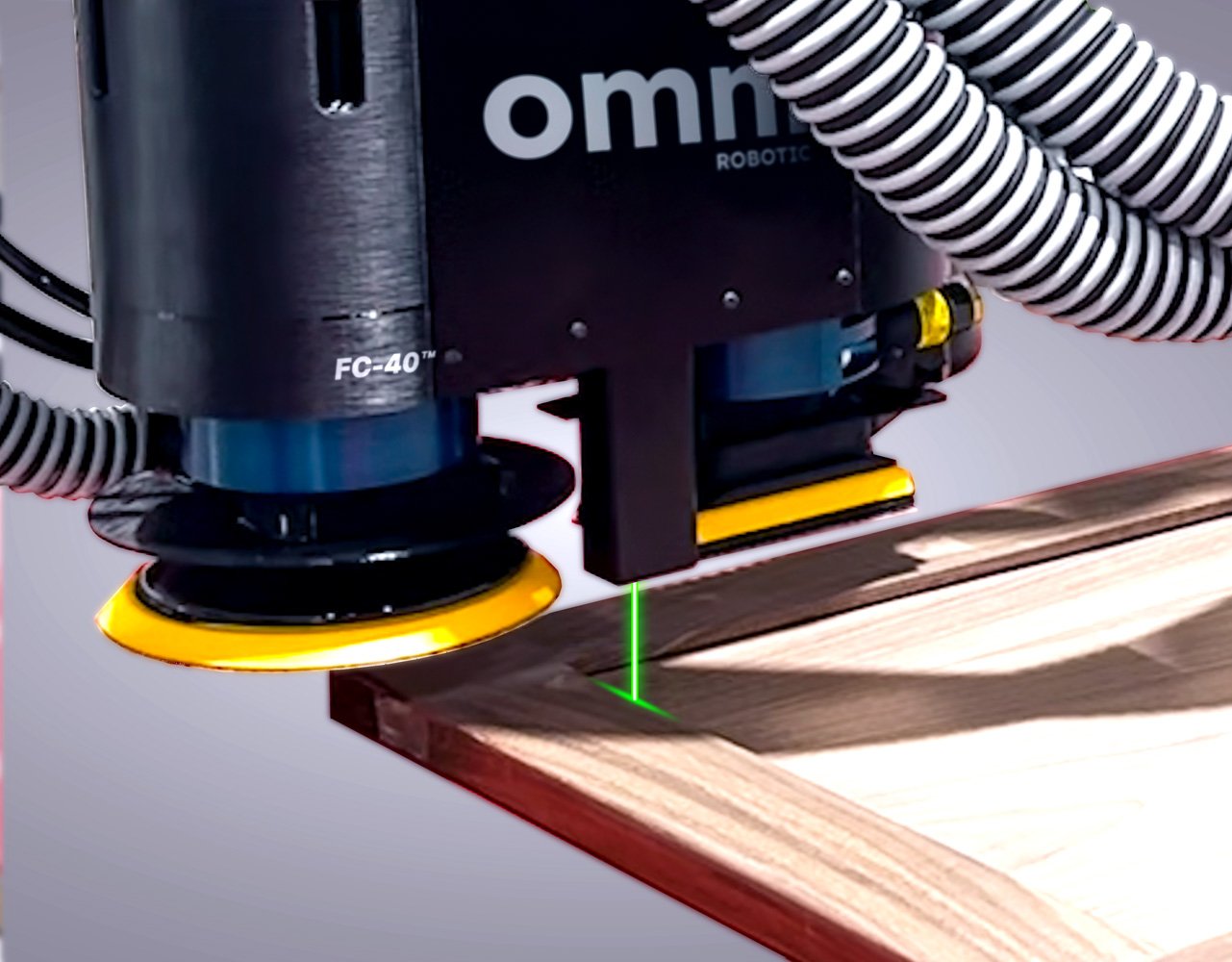

| Motion Precision | 0.1mm accuracy from detected edge |
| Number of Passes | Single or Multiple |
| Passes Overlap | 0 to 100% |
| Pneumatic | 5.5 bar @ 480 lpm (80 psi @ 17 cfm) |
| Power Tool | 1 – 45 Newton |
| Product Type | Panel Sanding Assistant |
| Productivity | Up to 500 panels per 8h, 135m2 (1458ft2) |
| Tool Advance Rate | 1mm to 300mm/s (0.04" to 11.8"/s) |
| Tool Force | 1 to 50 Newtons (0.22 to 11.2 lb-f) |
| Vacuum (Min.) | 1.5 kPa @ 20m3/min (6" of water @ 700 cfm) |
| Weight | 2,000.000 lbs |
