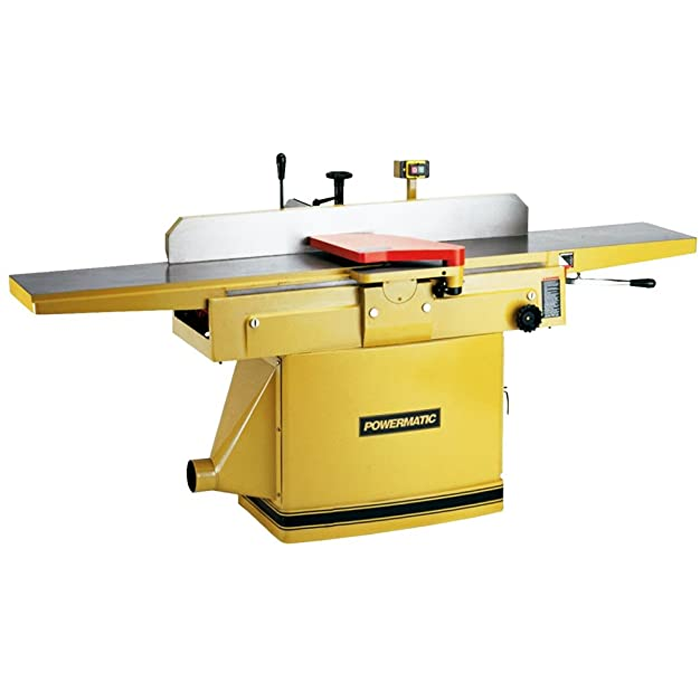

Powermatic 1285 Jointer 3Hp 3Ph 230V/460V
Powermatic 1285 Jointer 3Hp 3Ph 230V/460V is documented as a Jointer from Powermatic Tools. The exact PM9-1791308 configuration is mapped to Stellar Woodworks SKU JPW1791308. Recorded technical data includes horsepower: 3 HP, motor power: 3, and motor voltage (v.): 230/460. Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.
Powermatic Tools
946 lbs
Jointers
In stock / ready to order
5 in stock
Overview
Powermatic 1285 Jointer 3Hp 3Ph 230V/460V is documented as a Jointer from Powermatic Tools. The exact PM9-1791308 configuration is mapped to Stellar Woodworks SKU JPW1791308. Recorded technical data includes horsepower: 3 HP, motor power: 3, and motor voltage (v.): 230/460. Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.
Technical Specifications
| Cutter Block | Helical |
|---|---|
| Cutter Block Speed | 5000 |
| Cutter Head Speed | 5000 RPM |
| Cutting Capacity (W x D) (In.) | 11-3/4 x 3/4 |
| Dust Collection Minimum CFM Required (CFM) | 800 |
| Dust Port Outside Diameter (In.) | 4 |
| Fence Positive Stops (Deg.) | 45, 90, -45 |
| Fence Size (L x H) (In.) | 47-1/4 x 5-1/4 |
| Fence Tilt (Deg.) | 45 Forward, 45 Backward |
| Helical Knife Size (L x W x T) (In.) | 1.18 x .472 x .079 |
| Horsepower | 3 HP |
| Motor Phase | 3 |
| Motor Power | 3 |
| Motor Voltage (V.) | 230/460 |
| Number of Knives | 42 Four Sided Carbide Helical Inserts, 2 Rabbet |
| Phase | 3 |
| Prewired Voltage (V.) | 230 |
| Product Type | Jointer |
| Recommended Circuit Size (Amps.) | 15/10 |
| Table Height from Floor (In.) | 31-5/8 |
| Table Size (L x W) (In.) | 84 x 12 |
| Voltage | 230/460V |
| Warranty | 5 Years |
| Weight | 946.000 lbs |
| Brand | Powermatic Tools |
|---|---|
| Weight | 946 lbs |
| Category | Jointers |
| Availability | In stock / ready to order |
No customer reviews have been submitted for this machine yet. Contact our equipment team for application references and current delivery information.
Estimated Handling & Transit
Both periods are estimates, not guaranteed delivery dates. Manufacturer lead time, special configuration, backorders, oversized transport, and customer changes can require more time.
Freight, Rigging & Installation
After you order, our team will contact you to arrange the carrier, destination access, delivery appointment, unloading or rigging needs, and any optional installation or training services before shipment. Standard freight does not automatically include unloading, final placement, crane or forklift service, rigging, installation, commissioning, operator training, or utility connections. Any additional charge not collected at checkout is disclosed for your written approval before shipment; we do not add an undisclosed charge.
Returns & Cancellations
Machinery orders may be subject to manufacturer production status, freight commitments, and authorized return conditions. Review the controlling policies; you do not need to contact us before placing the order.
Proof of Delivery & Installation
Real photos from real jobs. We do not drop machines at the curb — we coordinate delivery, installation, calibration, and operator handoff.
Interested in This Machine?
Our equipment team can answer questions, arrange a demonstration, or prepare a written quote defining product availability, freight, unloading, installation, training, and warranty scope.
Powermatic 1285 Jointer 3Hp 3Ph 230V/460V
Sale price:$6,203.40
Powermatic 1285 Jointer 3Hp 3Ph 230V/460V is documented as a Jointer from Powermatic Tools. The exact PM9-1791308 configuration is mapped to Stellar Woodworks SKU JPW1791308. Recorded technical data includes horsepower: 3 HP, motor power: 3, and motor voltage (v.): 230/460. Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.
5 in stock
Overview
Powermatic 1285 Jointer 3Hp 3Ph 230V/460V is documented as a Jointer from Powermatic Tools. The exact PM9-1791308 configuration is mapped to Stellar Woodworks SKU JPW1791308. Recorded technical data includes horsepower: 3 HP, motor power: 3, and motor voltage (v.): 230/460. Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.
Technical Specifications
| Cutter Block | Helical |
|---|---|
| Cutter Block Speed | 5000 |
| Cutter Head Speed | 5000 RPM |
| Cutting Capacity (W x D) (In.) | 11-3/4 x 3/4 |
| Dust Collection Minimum CFM Required (CFM) | 800 |
| Dust Port Outside Diameter (In.) | 4 |
| Fence Positive Stops (Deg.) | 45, 90, -45 |
| Fence Size (L x H) (In.) | 47-1/4 x 5-1/4 |
| Fence Tilt (Deg.) | 45 Forward, 45 Backward |
| Helical Knife Size (L x W x T) (In.) | 1.18 x .472 x .079 |
| Horsepower | 3 HP |
| Motor Phase | 3 |
| Motor Power | 3 |
| Motor Voltage (V.) | 230/460 |
| Number of Knives | 42 Four Sided Carbide Helical Inserts, 2 Rabbet |
| Phase | 3 |
| Prewired Voltage (V.) | 230 |
| Product Type | Jointer |
| Recommended Circuit Size (Amps.) | 15/10 |
| Table Height from Floor (In.) | 31-5/8 |
| Table Size (L x W) (In.) | 84 x 12 |
| Voltage | 230/460V |
| Warranty | 5 Years |
| Weight | 946.000 lbs |
| Weight | 946 lbs |
|---|---|
| Brand | Powermatic Tools |
