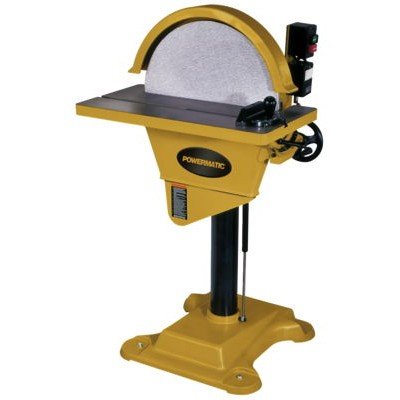

Powermatic DS20 Disc Sander 20" 2HP 1Ph 230V
Powermatic DS20 Disc Sander 20" 2HP 1Ph 230V is documented as a Disc Sander from Powermatic Tools. The exact PM9-1791276 configuration is mapped to Stellar Woodworks SKU JPW1791276. Recorded technical data includes motor power (hp): 2, motor voltage (v.): 230 only, and prewired voltage (v.): 230. Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.
Powermatic Tools
490 lbs
Disc Sanders
In stock / ready to order
3 in stock
Overview
Powermatic DS20 Disc Sander 20" 2HP 1Ph 230V is documented as a Disc Sander from Powermatic Tools. The exact PM9-1791276 configuration is mapped to Stellar Woodworks SKU JPW1791276. Recorded technical data includes motor power (hp): 2, motor voltage (v.): 230 only, and prewired voltage (v.): 230. Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.
Technical Specifications
| Disc Diameter (In.) | 20 |
|---|---|
| Disc Speed (RPM) | 1720 |
| Disc Table Size (L x W) (In.) | 10-1/2 x 27-1/2 |
| Disc Table Tilt (Deg.) | 30 Up, 45 Down |
| Drive Motor | 1 |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Dust Port Outside Diameter (In.) | 4 |
| Motor Current (Amps) | 14 |
| Motor Phase | 1 |
| Motor Power (HP) | 2 |
| Motor Voltage (V.) | 230 only |
| Prewired Voltage (V.) | 230 |
| Product Type | Disc Sander |
| Recommended Circuit Size (Amps.) | 30 |
| Style (Type) | Disc |
| Warranty | 5 Years |
| Weight | 490.000 lbs |
| Brand | Powermatic Tools |
|---|---|
| Weight | 490 lbs |
| Category | Disc Sanders |
| Availability | In stock / ready to order |
No customer reviews have been submitted for this machine yet. Contact our equipment team for application references and current delivery information.
Estimated Handling & Transit
Both periods are estimates, not guaranteed delivery dates. Manufacturer lead time, special configuration, backorders, oversized transport, and customer changes can require more time.
Freight, Rigging & Installation
After you order, our team will contact you to arrange the carrier, destination access, delivery appointment, unloading or rigging needs, and any optional installation or training services before shipment. Standard freight does not automatically include unloading, final placement, crane or forklift service, rigging, installation, commissioning, operator training, or utility connections. Any additional charge not collected at checkout is disclosed for your written approval before shipment; we do not add an undisclosed charge.
Returns & Cancellations
Machinery orders may be subject to manufacturer production status, freight commitments, and authorized return conditions. Review the controlling policies; you do not need to contact us before placing the order.
Proof of Delivery & Installation
Real photos from real jobs. We do not drop machines at the curb — we coordinate delivery, installation, calibration, and operator handoff.
Interested in This Machine?
Our equipment team can answer questions, arrange a demonstration, or prepare a written quote defining product availability, freight, unloading, installation, training, and warranty scope.
Powermatic DS20 Disc Sander 20″ 2HP 1Ph 230V
Sale price:$2,276.40
Powermatic DS20 Disc Sander 20″ 2HP 1Ph 230V is documented as a Disc Sander from Powermatic Tools. The exact PM9-1791276 configuration is mapped to Stellar Woodworks SKU JPW1791276. Recorded technical data includes motor power (hp): 2, motor voltage (v.): 230 only, and prewired voltage (v.): 230. Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.
3 in stock
Overview
Powermatic DS20 Disc Sander 20" 2HP 1Ph 230V is documented as a Disc Sander from Powermatic Tools. The exact PM9-1791276 configuration is mapped to Stellar Woodworks SKU JPW1791276. Recorded technical data includes motor power (hp): 2, motor voltage (v.): 230 only, and prewired voltage (v.): 230. Use the specification table and linked product literature to confirm electrical, capacity, dimensional, and installation requirements for project planning.
Technical Specifications
| Disc Diameter (In.) | 20 |
|---|---|
| Disc Speed (RPM) | 1720 |
| Disc Table Size (L x W) (In.) | 10-1/2 x 27-1/2 |
| Disc Table Tilt (Deg.) | 30 Up, 45 Down |
| Drive Motor | 1 |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Dust Port Outside Diameter (In.) | 4 |
| Motor Current (Amps) | 14 |
| Motor Phase | 1 |
| Motor Power (HP) | 2 |
| Motor Voltage (V.) | 230 only |
| Prewired Voltage (V.) | 230 |
| Product Type | Disc Sander |
| Recommended Circuit Size (Amps.) | 30 |
| Style (Type) | Disc |
| Warranty | 5 Years |
| Weight | 490.000 lbs |
| Weight | 490 lbs |
|---|---|
| Brand | Powermatic Tools |
